YAN WA Machinery Manufacturing Excavator (YAN WA) is pioneering, enterprising and creating new situations. Adhering to a rigorous attitude towards product quality and the spirit of excellence, the company has established a complete quality assurance system and quality assessment system, and has passed 9001 certification and EU CE certif ication. The company’s leading products are 6-80 ton crawler excavators, wheeled excavators, pile drivers, extended arms, amphibious excavators, demolition machines and other special equipment, covering the main models of construction machinery currently on the market, meeting the needs of meet the needs of different market segments. It has the advantages of high configuration, stable performance, good reliability and high cost performance.

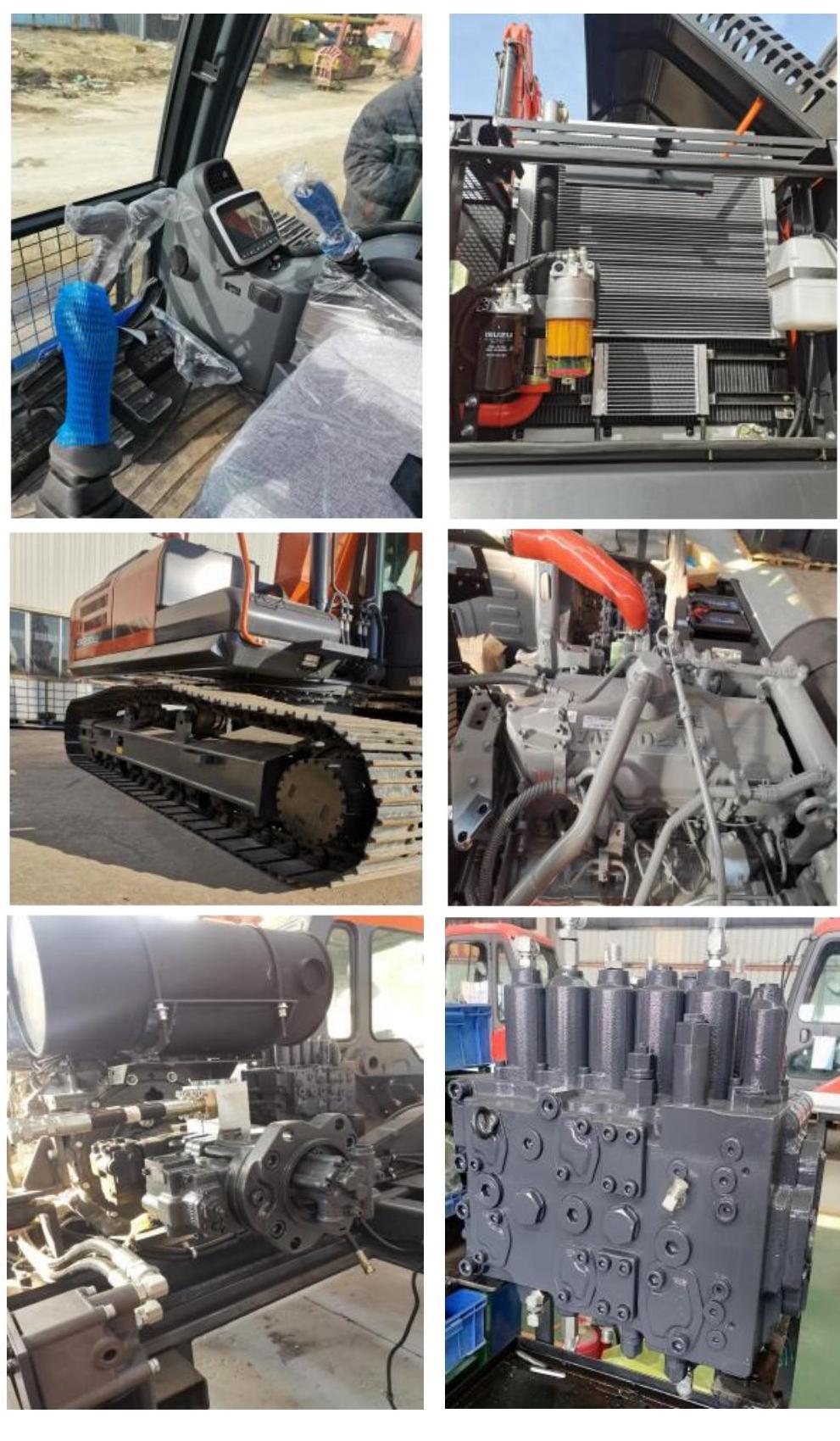

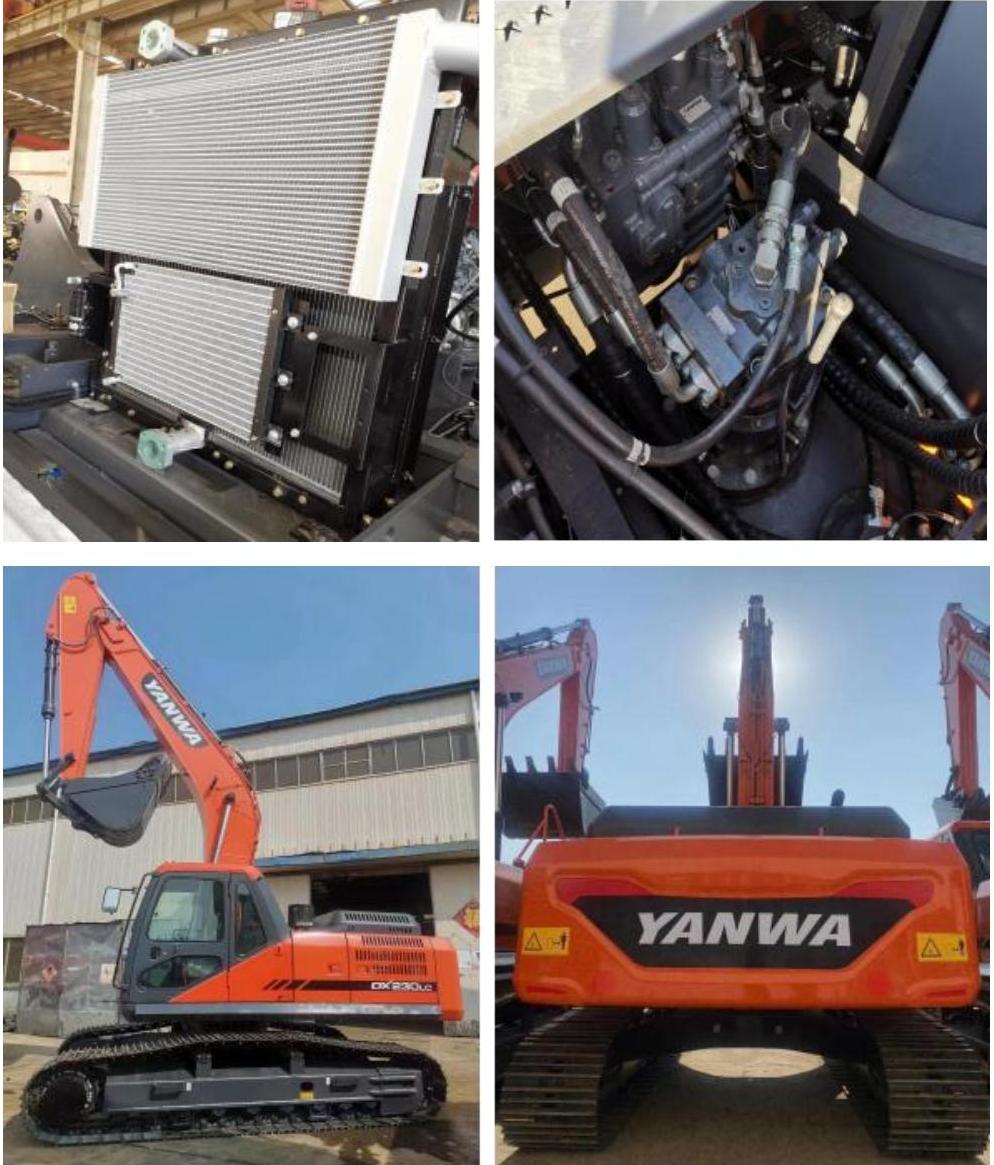

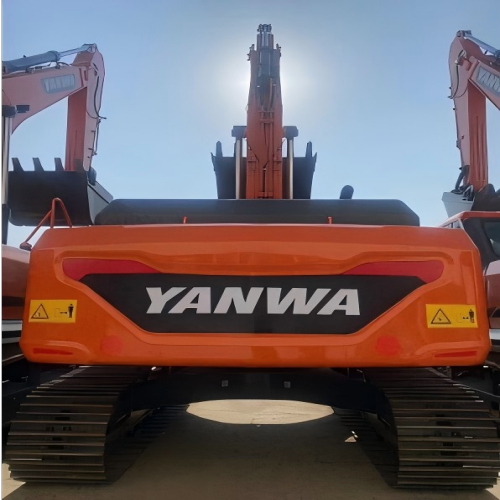

| YW 230LC-9 Main configuration | ||||||
| Engine | Main Pump | |||||
| Model | 4HK1 | Brand | Kawasaki | K3V112 | ||
| Type | Electric spray Isuzu | |||||
| Emission standard | National III emissions | |||||
| Inhale | Turbo | |||||
| Cylinders | 4 Cylinder | |||||
| Bucket capacity | 1.1 Cubic meter | |||||
| Power rating | 133KW/2000 | |||||
| Steel-diameter X-stroke (mm) | 115X125 | |||||
| Work form | Electronic injection ECO control engine | |||||
| Main Valve | Travel | |||||
| Kawasaki series | Brand | TM40 | ||||
| Swing | Chassis parts | |||||
| Doosan motor | Quan Yu | |||||
| Hydraulic Pressure System | Scope of work | |||||
| Main Pump Type | Variable plunger pump | Maximum excavation radius (mm) | 9910 | |||
| Maximum flow rate of the Main Pump (l / min) | 2×211 | Maximum excavation radius of stop face (mm) | 9735 | |||
| WalMainHydraulic motor Type | Axial plunger Type 2 | Maximum excavation depth (mm) | 6625 | |||
| Rotary Hydraulic motor Type | Axial plunger Type 1 | Maximum excavation height (mm) | 9660 | |||
| WorMainHydraulic oil path (Mpa) | Standard32.4/boost 34.3 | Maximum unloading height (mm) | 6810 | |||
| WalMainHydraulic Circuit (Mpa) | 32.4 | Maximum vertical excavation depth (mm) | 6045 | |||
| Rotary Hydraulic circuit (Mpa) | 27.5 | Oil capacity | ||||
| Arm cylinder-Cylinders diameter stroke (mm) | 2-120×85×1245 | |||||
| Bucper cylinder-number cylinder diameter stroke (mm) | 1-135×95×1538 | |||||
| Bucper cylinder-number cylinder diameter stroke (mm) | 1-120×80×1050 | |||||
| Main body size | ||||||
| Total Transport Length (mm) | 9600 | Fuel tank (L) | 350 | |||
| Total transport width (mm) | 2990 | Hydraulic oil tank (L) | 240 | |||
| Total transport height (mm) | 3000 | Engine oil replacement volume (L) | 20 | |||
| Counterweight and ground clearance (mm) | 1105 | Coolant liquid (L) | 42 | |||
| Total track length (mm) | 4440 | Performance | ||||
| Crawle plate width (mm) | 2990 | Swing speed (rpm) | 12.4 | |||
| Crawler gauge (mm) | 2390 | WalMainspeed (km/h) | 5.4/3.1 | |||
| Minimum ground clearance (mm) | 480 | Ground specific pressure (Kpa) | 46 | |||
| Minimum radius of rotation (m） | 3570 | Bucket excavation force (kN) | 136.3/ 144.1 | |||
| End ius of rotation (mm) | 2840 | Bucod excavation force (kN) | 97.1/102.9 | |||
